SeaTunnel Engine (Zeta) Architecture

1. Overview

1.1 Problem Background

Data integration engines must solve fundamental distributed systems challenges:

• Distributed Execution: How to execute jobs across multiple machines?
• Resource Management: How to allocate and schedule tasks efficiently?
• Fault Tolerance: How to recover from worker/master failures?
• Coordination: How to synchronize distributed tasks (checkpoints, commits)?
• Scalability: How to handle increasing workloads?

1.2 Design Goals

SeaTunnel Engine (Zeta) is designed as a native execution engine with:

1. Lightweight: Minimal dependencies, fast startup, low resource overhead
2. High Performance: Optimized for data synchronization workloads
3. Fault Tolerance: Checkpoint-based recovery with exactly-once semantics
4. Resource Efficiency: Slot-based resource management with fine-grained control
5. Engine Independence: Supports same connector API as Flink/Spark translations

1.3 Architecture Comparison

Feature	SeaTunnel Zeta	Apache Flink	Apache Spark
Primary Use Case	Data sync, CDC	Stream processing	Batch + ML
Resource Model	Slot-based	Slot-based	Executor-based
State Backend	Pluggable (HDFS/S3/Local)	RocksDB/Heap	In-memory/Disk
Checkpoint	Distributed snapshots	Chandy-Lamport	RDD lineage
Operational Complexity	Lower (engine-native)	Higher	Higher

2. Overall Architecture

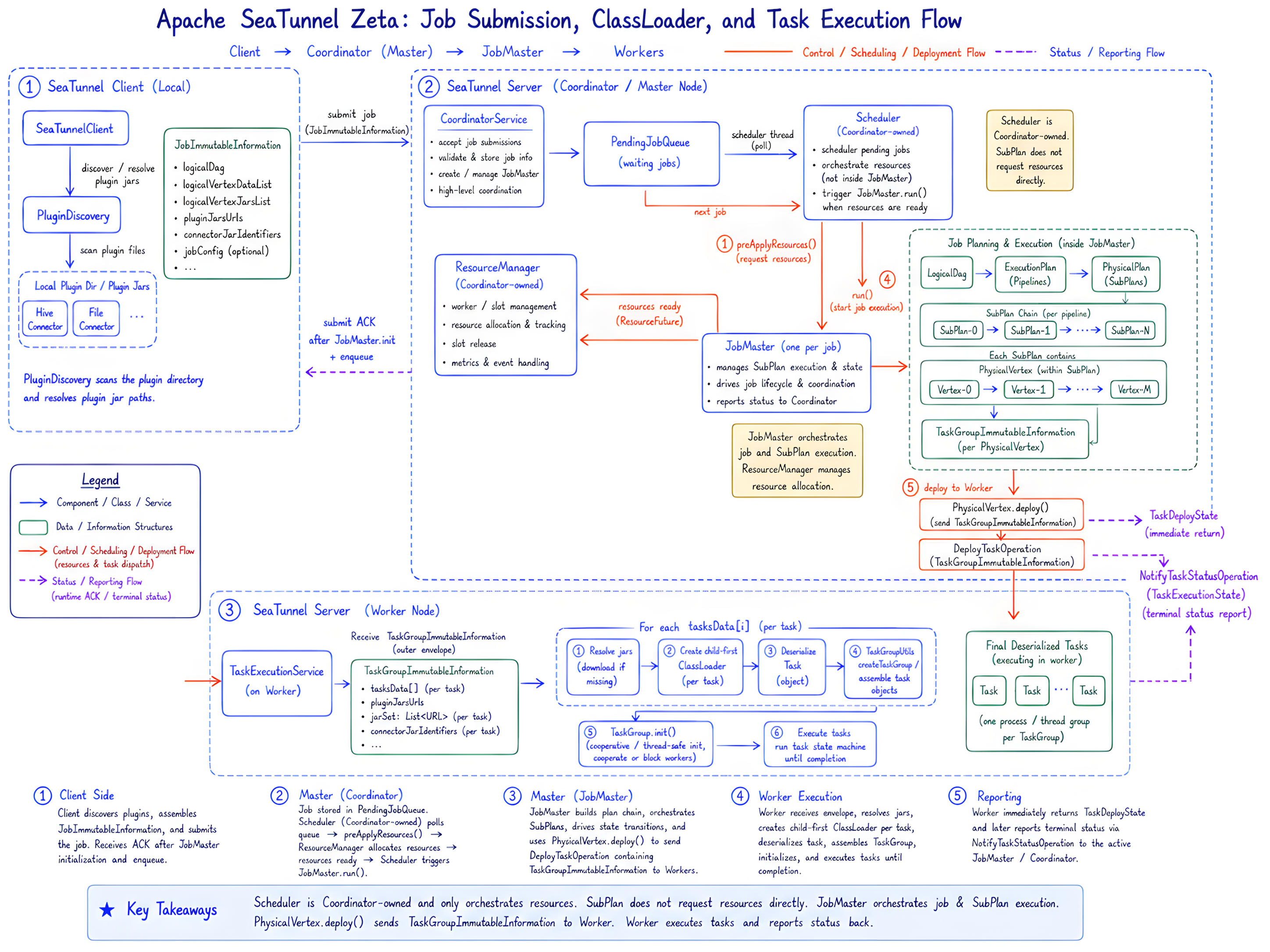

2.1 Master-Worker Architecture

┌─────────────────────────────────────────────────────────────────┐
│                         Master Node                              │
│                                                                   │
│   ┌───────────────────────────────────────────────────────┐     │
│   │              CoordinatorService                       │     │
│   │  • Manages all running jobs                           │     │
│   │  • Job submission and lifecycle management            │     │
│   │  • Maintains job state (IMap)                         │     │
│   │  • Resource manager factory                           │     │
│   └───────────────────────────────────────────────────────┘     │
│                                                                   │
│   ┌───────────────────────────────────────────────────────┐     │
│   │         JobMaster (one per job)                       │     │
│   │  • Generates physical execution plan                  │     │
│   │  • Requests resources from ResourceManager            │     │
│   │  • Deploys tasks to workers                           │     │
│   │  • Coordinates checkpoints                            │     │
│   │  • Handles failover and recovery                      │     │
│   └───────────────────────────────────────────────────────┘     │
│           │                         │                            │
│           │ (Task Deploy)           │ (Resource Request)         │
│           ▼                         ▼                            │
│   ┌─────────────────┐      ┌────────────────────────────┐      │
│   │ CheckpointManager│     │   ResourceManager          │      │
│   │ (per pipeline)  │      │   • Slot allocation        │      │
│   └─────────────────┘      │   • Worker registration     │      │
│                             │   • Load balancing          │      │
│                             └────────────────────────────┘      │
└─────────────────────────────────────────────────────────────────┘
                             │
                             │ (Hazelcast Cluster)
                             ▼
┌─────────────────────────────────────────────────────────────────┐
│                         Worker Nodes                             │
│                                                                   │
│   ┌───────────────────────────────────────────────────────┐     │
│   │          TaskExecutionService                         │     │
│   │  • Deploys and executes tasks                         │     │
│   │  • Manages task lifecycle                             │     │
│   │  • Reports heartbeat                                  │     │
│   │  • Slot resource management                           │     │
│   └───────────────────────────────────────────────────────┘     │
│                            │                                      │
│                            ▼                                      │
│   ┌───────────────────────────────────────────────────────┐     │
│   │         SeaTunnelTask (multiple per worker)           │     │
│   │                                                         │     │
│   │  ┌─────────────────────────────────────────────┐      │     │
│   │  │  SourceFlowLifeCycle                        │      │     │
│   │  │  • SourceReader                             │      │     │
│   │  │  • SeaTunnelSourceCollector                 │      │     │
│   │  └─────────────────────────────────────────────┘      │     │
│   │                      │                                 │     │
│   │                      ▼                                 │     │
│   │  ┌─────────────────────────────────────────────┐      │     │
│   │  │  TransformFlowLifeCycle                     │      │     │
│   │  │  • Transform chain                          │      │     │
│   │  └─────────────────────────────────────────────┘      │     │
│   │                      │                                 │     │
│   │                      ▼                                 │     │
│   │  ┌─────────────────────────────────────────────┐      │     │
│   │  │  SinkFlowLifeCycle                          │      │     │
│   │  │  • SinkWriter                               │      │     │
│   │  └─────────────────────────────────────────────┘      │     │
│   └───────────────────────────────────────────────────────┘     │
└─────────────────────────────────────────────────────────────────┘

2.2 Core Components

CoordinatorService

Centralized service managing all jobs in the cluster.

Responsibilities:

• Accept job submissions
• Create JobMaster for each job
• Maintain job state in distributed IMap
• Provide job query and management APIs
• Handle job lifecycle events

Key Data Structures:

// Running job state (distributed IMap backed by Hazelcast)
IMap<Long, JobInfo> runningJobInfoIMap;
IMap<Long, JobStatus> runningJobStateIMap;
IMap<Long, Long> runningJobStateTimestampsIMap;

// Completed job history
IMap<Long, JobInfo> completedJobInfoIMap;

Code Reference:

• CoordinatorService.java

JobMaster

Manages single job execution lifecycle.

Responsibilities:

• Parse configuration → generate LogicalDag
• Generate PhysicalPlan from LogicalDag
• Request resources (slots) from ResourceManager
• Deploy tasks to workers
• Coordinate pipeline checkpoints
• Handle task failures and reschedule

Lifecycle:

Created → Initialized → Scheduled → Running → Finished/Failed/Canceled

Key Operations:

1. init(): Generate physical plan, create checkpoint coordinators
2. run(): Request resources, deploy tasks, start execution
3. handleFailure(): Restart failed tasks, restore from checkpoint

Code Reference:

• JobMaster.java

ResourceManager

Manages worker resources and slot allocation.

Responsibilities:

• Track worker registration and heartbeat
• Maintain worker resource profiles (CPU, memory)
• Allocate slots based on strategies (random, slot ratio, load-based)
• Release slots after task completion
• Handle worker failures

Slot Allocation Strategies:

// 1. Random: Random selection among available workers
// 2. SlotRatio: Prefer workers with more available slots
// 3. SystemLoad: Prefer workers with lower CPU/memory usage

Code Reference:

• ResourceManager.java
• AbstractResourceManager.java

3. DAG Execution Model

3.1 Execution Plan Transformation

User Config (HOCON)
    │
    ▼
┌───────────────┐
│  LogicalDag   │  • Logical vertices (Source/Transform/Sink)
│               │  • Logical edges (data flow)
│               │  • Parallelism (per vertex)
└───────────────┘
    │ (JobMaster.generatePhysicalPlan())
    ▼
┌───────────────┐
│ PhysicalPlan  │  • List of SubPlan (pipelines)
│               │  • JobImmutableInformation
│               │  • Resource requirements
└───────────────┘
    │
    ▼
┌───────────────┐
│   SubPlan     │  • Pipeline (independent execution unit)
│  (Pipeline)   │  • List of PhysicalVertex
│               │  • CheckpointCoordinator
└───────────────┘
    │
    ▼
┌───────────────┐
│PhysicalVertex │  • TaskGroup (co-located tasks)
│               │  • Assigned SlotProfile
│               │  • ExecutionState
└───────────────┘
    │
    ▼
┌───────────────┐
│  TaskGroup    │  • Multiple SeaTunnelTask instances
│               │  • Shared network buffer
│               │  • Thread pool
└───────────────┘
    │
    ▼
┌───────────────┐
│ SeaTunnelTask │  • Single task execution
│               │  • Source/Transform/Sink lifecycle
│               │  • Task state machine
└───────────────┘

3.2 LogicalDag

Represents user's intent in engine-independent way.

public class LogicalDag {
    private final Map<Long, LogicalVertex> logicalVertexMap;
    private final Set<LogicalEdge> edges;
    private final JobConfig jobConfig;
}

public class LogicalVertex {
    private final long vertexId;
    private final Action action; // SourceAction / TransformChainAction / SinkAction
    private final int parallelism;
}

public class LogicalEdge {
    private final long inputVertexId;
    private final long targetVertexId;
}

Creation:

// From user config
LogicalDag logicalDag = LogicalDagBuilder.build(jobConfig);

3.3 PhysicalPlan

Represents actual execution plan with resource allocation.

public class PhysicalPlan {
    private final List<SubPlan> pipelineList;
    private final JobImmutableInformation jobImmutableInformation;
    private final CompletableFuture<JobResult> jobEndFuture;
}

public class SubPlan {
    private final int pipelineId;
    private final List<PhysicalVertex> physicalVertexList;
    private final List<PhysicalVertex> coordinatorVertexList;
    private final CheckpointCoordinator checkpointCoordinator;
}

public class PhysicalVertex {
    private final TaskGroupLocation taskGroupLocation;
    private final TaskGroupDefaultImpl taskGroup;
    private final SlotProfile slotProfile; // Assigned slot
    private final ExecutionState currentExecutionState;
}

Generation:

PhysicalPlan physicalPlan = jobMaster.getPhysicalPlan();
// JobMaster internally:
// 1. Split LogicalDag into pipelines
// 2. Generate PhysicalVertex for each parallel instance
// 3. Create CheckpointCoordinator per pipeline

3.4 Pipeline Execution

Jobs are divided into Pipelines (SubPlans) for independent execution:

Example:

# Config with multiple sources/sinks
env { ... }

source {
  MySQL-CDC { table = "orders" }
  Kafka { topic = "events" }
}

transform {
  Sql { query = "SELECT * FROM orders JOIN events ON ..." }
}

sink {
  Elasticsearch { index = "orders" }
  JDBC { table = "events" }
}

Generated Pipelines:

Pipeline 1: MySQL-CDC → Transform → Elasticsearch
Pipeline 2: Kafka → Transform → JDBC

Benefits:

• Independent checkpoint coordination
• Isolated failure domains
• Parallel pipeline execution

3.5 Task Fusion

Multiple actions can be fused into single TaskGroup for efficiency:

Without Fusion:
[Source Task] → Network → [Transform Task] → Network → [Sink Task]

With Fusion:
[TaskGroup: Source → Transform → Sink] (single thread, no network)

Fusion Conditions:

• Same parallelism
• Sequential dependency
• No shuffle required

4. Task Lifecycle

4.1 Task State Machine

   [Created]
       │
       ▼
    [INIT] ────────────────────────────────────┐
       │                                        │
       ▼                                        │
[WAITING_RESTORE] (if recovering)              │
       │                                        │
       ▼                                        │
  [READY_START]                                │
       │                                        │
       ▼                                        │
   [STARTING] ──────────────┐                  │
       │                     │                  │
       ▼                     ▼                  ▼
   [RUNNING] ──────────> [FAILED] ─────> (Restart)
       │
       ▼
[PREPARE_CLOSE]
       │
       ▼
    [CLOSED]
       │
       ▼
   [CANCELED] (if job canceled)

State Transitions:

1. CREATED → INIT: Task created, initializing resources
2. INIT → WAITING_RESTORE: Recovering from checkpoint
3. WAITING_RESTORE → READY_START: State restored
4. READY_START → STARTING: Opening Source/Transform/Sink
5. STARTING → RUNNING: Data processing started
6. RUNNING → PREPARE_CLOSE: Normal completion
7. PREPARE_CLOSE → CLOSED: Resources cleaned up
8. RUNNING → FAILED: Exception occurred

4.2 SeaTunnelTask Execution

public abstract class SeaTunnelTask implements Runnable {
    private final TaskLocation taskLocation;
    private final TaskExecutionContext executionContext;
    private ExecutionState executionState;

    @Override
    public void run() {
        try {
            init();
            restoreState(); // If recovering
            open();

            while (isRunning()) {
                processData(); // Source: read, Transform: process, Sink: write
                handleBarrier(); // Checkpoint barriers
            }

            close();
        } catch (Exception e) {
            handleException(e);
        }
    }
}

Task Types:

• SourceSeaTunnelTask: Runs SourceReader, emits data
• SinkSeaTunnelTask: Runs SinkWriter, consumes data
• TransformSeaTunnelTask: Runs Transform chain

4.3 FlowLifeCycle Management

Each task manages component lifecycle through FlowLifeCycle:

// Source task
public class SourceFlowLifeCycle<T> implements FlowLifeCycle {
    private final SourceReader<T, ?> sourceReader;
    private final SeaTunnelSourceCollector collector;

    @Override
    public void open() {
        sourceReader.open();
    }

    @Override
    public void collect() {
        sourceReader.pollNext(collector); // Read data
    }

    @Override
    public void close() {
        sourceReader.close();
    }
}

// Sink task
public class SinkFlowLifeCycle<T> implements FlowLifeCycle {
    private final SinkWriter<T, ?, ?> sinkWriter;

    @Override
    public void collect() {
        T record = inputQueue.poll();
        sinkWriter.write(record); // Write data
    }
}

5. Checkpoint Coordination

5.1 CheckpointCoordinator (per Pipeline)

Each pipeline has independent checkpoint coordinator.

Responsibilities:

• Trigger checkpoint periodically
• Inject checkpoint barriers into data flow
• Collect task acknowledgements
• Persist completed checkpoints
• Clean up old checkpoints

Key Data Structures:

public class CheckpointCoordinator {
    private final CheckpointIDCounter checkpointIdCounter;
    private final Map<Long, PendingCheckpoint> pendingCheckpoints;
    private final ArrayDeque<String> completedCheckpointIds;
    private final CheckpointStorage checkpointStorage;
}

Checkpoint Flow:

1. Coordinator triggers checkpoint (periodic or manual)
2. Send barriers to all source tasks in pipeline
3. Barriers propagate through data flow
4. Each task snapshots state upon receiving barrier
5. Tasks send ACK back to coordinator
6. Coordinator waits for all ACKs
7. Create CompletedCheckpoint, persist to storage

Code Reference:

• CheckpointCoordinator.java

5.2 Checkpoint Barrier

Special control message that flows with data:

public class Barrier {
    private final long checkpointId;
    private final long timestamp;
    private final CheckpointType type; // CHECKPOINT or SAVEPOINT
}

Barrier Alignment:

• Tasks with multiple inputs wait for barrier from ALL inputs before snapshotting
• Ensures consistent snapshot across distributed tasks

6. Resource Management

6.1 Slot Model

SlotProfile:

public class SlotProfile {
    private final int slotID;
    private final Address worker;
    private final ResourceProfile resourceProfile; // CPU, memory
}

public class ResourceProfile {
    private final CPU cpu;
    private final Memory heapMemory;
}

WorkerProfile:

public class WorkerProfile {
    private final Address address;
    private final ResourceProfile profile;
    private final ResourceProfile unassignedResource;
    private final SlotProfile[] assignedSlots;
    private final SlotProfile[] unassignedSlots;
    private final Map<String, String> attributes;
}

6.2 Resource Allocation Flow

sequenceDiagram
    participant JM as JobMaster
    participant RM as ResourceManager
    participant Worker as Worker Node

    JM->>RM: applyResources(jobId, resourceProfiles)
    RM->>RM: Select workers (strategy)
    RM->>RM: Allocate slots
    RM->>JM: Return slot profiles

    JM->>Worker: Deploy task (DeployTaskOperation)
    Worker->>Worker: Create SeaTunnelTask
    Worker->>JM: ACK

    JM->>JM: Task running

6.3 Tag-Based Slot Filtering

Assign tasks to specific worker groups:

env {
  # Job-level worker attribute filter (key/value full match)
  tag_filter = {
    zone = "db-zone"
  }
}

Usage:

• Data locality (assign to workers near data source)
• Resource isolation (GPU workers for ML transforms)
• Multi-tenancy (different teams use different worker pools)

7. Failure Handling

7.1 Task Failure

Detection:

• Task reports exception to JobMaster
• JobMaster monitors task heartbeat
• Timeout triggers failure detection

Recovery:

1. Mark task as FAILED
2. Release task's slot
3. Retrieve latest successful checkpoint
4. Restart task with restored state
5. Reassign splits (for Source tasks)

7.2 Worker Failure

Detection:

• ResourceManager monitors worker heartbeat
• Hazelcast cluster detects member removal

Recovery:

1. Mark all tasks on failed worker as FAILED
2. Trigger job failover
3. Restore from latest checkpoint
4. Reallocate slots on healthy workers
5. Redeploy tasks

7.3 Master Failure

High Availability:

• Multiple master nodes (Hazelcast cluster)
• Job state stored in distributed IMap (replicated)
• New master takes over from IMap state

Recovery:

1. Detect master failure (Hazelcast)
2. Elect new master
3. New master reads job state from IMap
4. Reconnect to workers
5. Resume checkpoint coordination

8. Design Considerations

8.1 Why Pipeline-based Execution?

Alternative: Single global DAG execution

Decision: Divide into pipelines

Benefits:

• Independent checkpoint coordination (less coordination overhead)
• Clear failure boundaries (one pipeline fails, others continue)
• Easier to reason about data flow
• Support complex DAGs (multiple sources/sinks)

Drawbacks:

• Cannot fuse tasks across pipeline boundaries
• Potential data serialization between pipelines

8.2 Why Hazelcast for Coordination?

Alternative: Zookeeper, etcd, custom Raft implementation

Decision: Hazelcast IMDG

Benefits:

• In-memory distributed data structures (low latency)
• Built-in cluster management and failure detection
• Easy to embed (no external dependencies)
• Familiar API (Java Collections)

Drawbacks:

• Memory overhead for large state
• Less battle-tested than Zookeeper for coordination

8.3 Performance Optimizations

1. Task Fusion:

• Reduce network overhead
• Improve CPU cache locality
• Lower serialization cost

2. Async Checkpoint:

• Checkpoint upload doesn't block data processing
• Parallel checkpoint across tasks

3. Incremental Checkpoint:

• Only upload changed state (future enhancement)

4. Zero-Copy Data Transfer:

• Shared memory between co-located tasks
• Avoid unnecessary serialization

9. Related Resources

• Architecture Overview
• Design Philosophy
• Checkpoint Mechanism
• Resource Management
• DAG Execution

10. References

Key Source Files

• Engine Core: seatunnel-engine/seatunnel-engine-server/src/main/java/org/apache/seatunnel/engine/server/
• DAG: seatunnel-engine/seatunnel-engine-core/src/main/java/org/apache/seatunnel/engine/core/dag/
• Checkpoint: seatunnel-engine/seatunnel-engine-server/src/main/java/org/apache/seatunnel/engine/server/checkpoint/

Further Reading

• Hazelcast IMDG
• Google Borg Paper - Inspiration for resource management
• Apache Flink Architecture
